プラスチック屋外テーブル金型
  • プラスチック屋外テーブル金型プラスチック屋外テーブル金型
  • プラスチック屋外テーブル金型プラスチック屋外テーブル金型
  • プラスチック屋外テーブル金型プラスチック屋外テーブル金型
  • プラスチック屋外テーブル金型プラスチック屋外テーブル金型

プラスチック屋外テーブル金型

アウトドアリビング分野では、スタイルを損なうことなく、最も過酷な環境条件に耐えることができる家具が求められています。プラスチック屋外テーブル金型は、これを可能にする重要なツールであり、メーカーは籐や木の美しさと射出成形ポリマーの頑丈な耐久性を組み合わせたテーブルを製造できます。 Zhongyue Mould では、屋外用途向けに特別に設計された高性能金型のエンジニアリングを専門とし、すべてのガーデン テーブル、パティオ セット、プールサイドの表面が耐候性、紫外線安定性、構造的に健全であることを保証します。
Plastic Outdoor Table Mould

Mastering Weather Resistance and Aesthetics


The outdoor living sector demands furniture that can withstand the harshest environmental conditions without compromising on style. The Plastic Outdoor Table Mould is the critical tool that makes this possible, enabling manufacturers to produce tables that combine the elegance of rattan or wood aesthetics with the rugged durability of injection-molded polymers. At Zhongyue Mould, we specialize in engineering high-performance molds designed specifically for exterior applications, ensuring that every garden table, patio set, or poolside surface is weather-resistant, UV-stable, and structurally sound.

Outdoor furniture faces a relentless barrage of UV radiation, rain, and temperature fluctuations. Our Plastic Outdoor Table Moulds are optimized to process high-performance materials like Polypropylene (PP) and High-Density Polyethylene (HDPE), which are renowned for their water resistance and longevity.

We excel in creating molds that mimic the complex weave of natural rattan or the grain of wood. Using advanced photo-etching and laser engraving technologies, we ensure the texture is deep and authentic. This provides a premium look that appeals to high-end consumers while retaining the low-maintenance benefits of plastic. Furthermore, our mold cavities are treated to produce a sophisticated matte finish, eliminating the "plastic shine" and ensuring the final product looks natural and elegant in any garden setting.


Plastic Table Mould specifications :



Mould Name

Plastic Outdoor Table Mould

Mold Meterial

P20,2738,718H,NAK80,2316,S136,H13,etc

Mold Base

Self-made,LKM,DME,ASSAB

Cavity

Single/multi

Runner

Cold runner and hot runner

Hot Runner Brand

Master, HUSKY,YUDO,etc.

Degsin Software

UG:Aoto CAD and so on

Mold Life

50-100 million Shots/ 5-6 years, Even in 10 years in good maintenance

T1 Time

25-60 days

Plastic Material

PP

Gate Type

Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.

Mould Surface Treatment

EDM, texture, high gloss polishing

Quality System

ISO9001

HS Code

8480719090

Origin

Huangyan Zhejiang China

Package

Wooden Case



Mould material

Hardness

Mould life

P20

HRC 28-33

>300,000 shots

718

HRC 33-36

>500,000 shots

H13

HRC >43

>800,000 shots

2344

HRC >48

>800,000 shots

S136

HRC 48-52

>1,000,000 shots


Make your next Plastic Table Mould project brighten!


Structural Integrity for Large Surfaces


Producing outdoor tables, particularly large dining sets or low coffee tables, involves managing large, flat surface areas that are prone to warping. Our engineering team utilizes scientific molding principles to overcome these challenges.

Advanced Cooling Systems: To minimize cycle times and prevent warpage on large table tops, we design optimized conformal cooling channels. This ensures uniform heat dissipation, resulting in a perfectly flat surface that sits stable on any patio.

Reinforced Under-Structure: The mold is designed to create complex ribbing patterns on the underside of the table. This adds significant strength to the furniture, allowing it to support heavy loads — such as outdoor dining ware or coolers — without flexing or cracking.

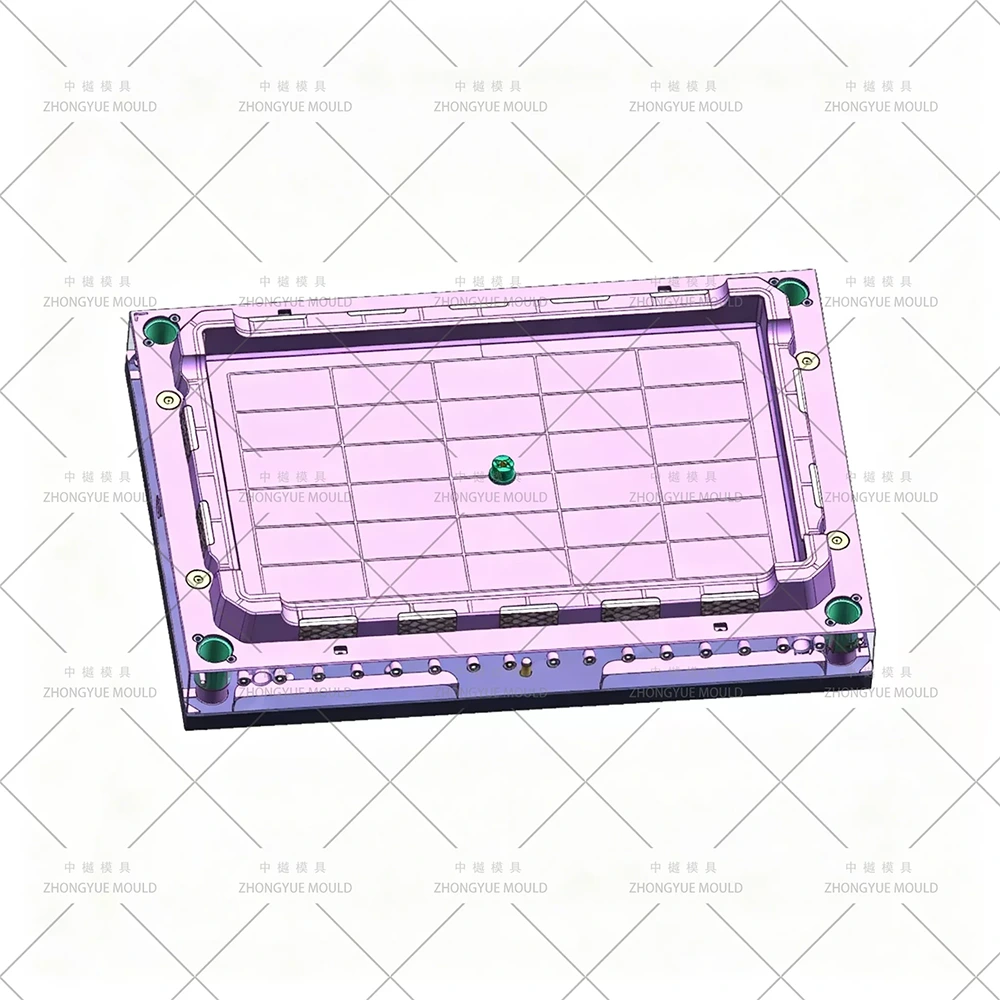

Plastic Outdoor Table Mould Production

Optimized for High-Volume Production


We understand that for furniture manufacturers, cycle time is directly linked to profitability. Our Plastic Outdoor Table Moulds are built for efficiency and versatility.

Hot Runner Compatibility: Our molds are designed to work seamlessly with hot runner systems (such as Yudo or Master), which reduce material waste and improve the flow of UV-stabilized plastics into the complex texture.

Stackable and Nesting Solutions: We can engineer the mold to produce stackable tables, a crucial feature for commercial clients like hotels and restaurants that need to save space.

Umbrella Hole Integration: Our molds can precisely form integrated holes for parasols, adding functional value to the table design without requiring secondary drilling operations.


Why Partner with Zhongyue Mould?


We understand that the outdoor furniture market moves fast. Zhongyue Mould is committed to delivering tooling that reduces your time-to-market while maximizing production efficiency.

Precision Manufacturing: We use high-speed CNC and EDM machining to ensure every detail of the rattan weave or texture is captured perfectly.

Global Standards: Our molds are built to international standards, compatible with injection molding machines worldwide.

Comprehensive Support: From DFM analysis to after-sales maintenance, we provide a full suite of services to ensure your production runs smoothly.


Elevate Your Outdoor Collection


Don't let inferior tooling compromise your brand reputation. Invest in a Plastic Outdoor Table Mould that delivers quality and durability. Contact Zhongyue Mould today for a professional consultation and quote. Let us help you build furniture that stands the test of time and weather.

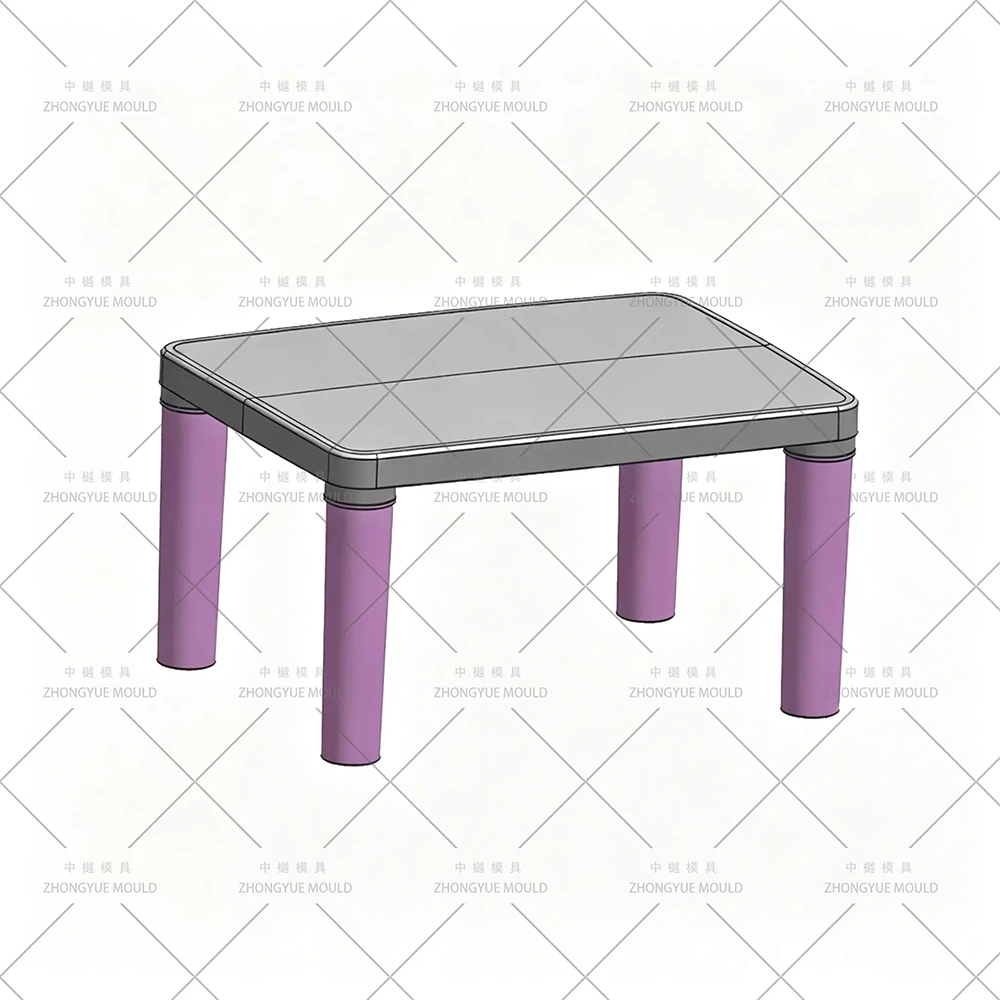

Plastic Outdoor Table Mould Elevate


How we processing the project?



About us


Driven by the philosophy:

“Quality Makes the Future, Focus Creates Professional”

Zhongyue Mould is a leading company in the plastic injection air conditioner Cover mould industry. Our highly experienced team of engineers and designers have many decades of combined experience in plastic air conditioner Cover mould design and manufacturing. We provide a comprehensive service, specializing in the production of high-quality and high-precision air conditioner Cover moulds. We have also assisted numerous customers in customizing various types of plastic air conditioner Cover moulding lines.

We can also offer comprehensive assistance in the management of your production process. The procurement department will purchase high-quality raw materials, while the technical department will select the appropriate plastic formula. In accordance with the parameters of the plastic air conditioner Cover mould life requirements and market positioning, we will select the most suitable plastic air conditioner Cover parameters, structure, etc. Our extensive production capacity allows us to deliver plastic air conditioner Covers promptly, at competitive prices and with guaranteed quality.
